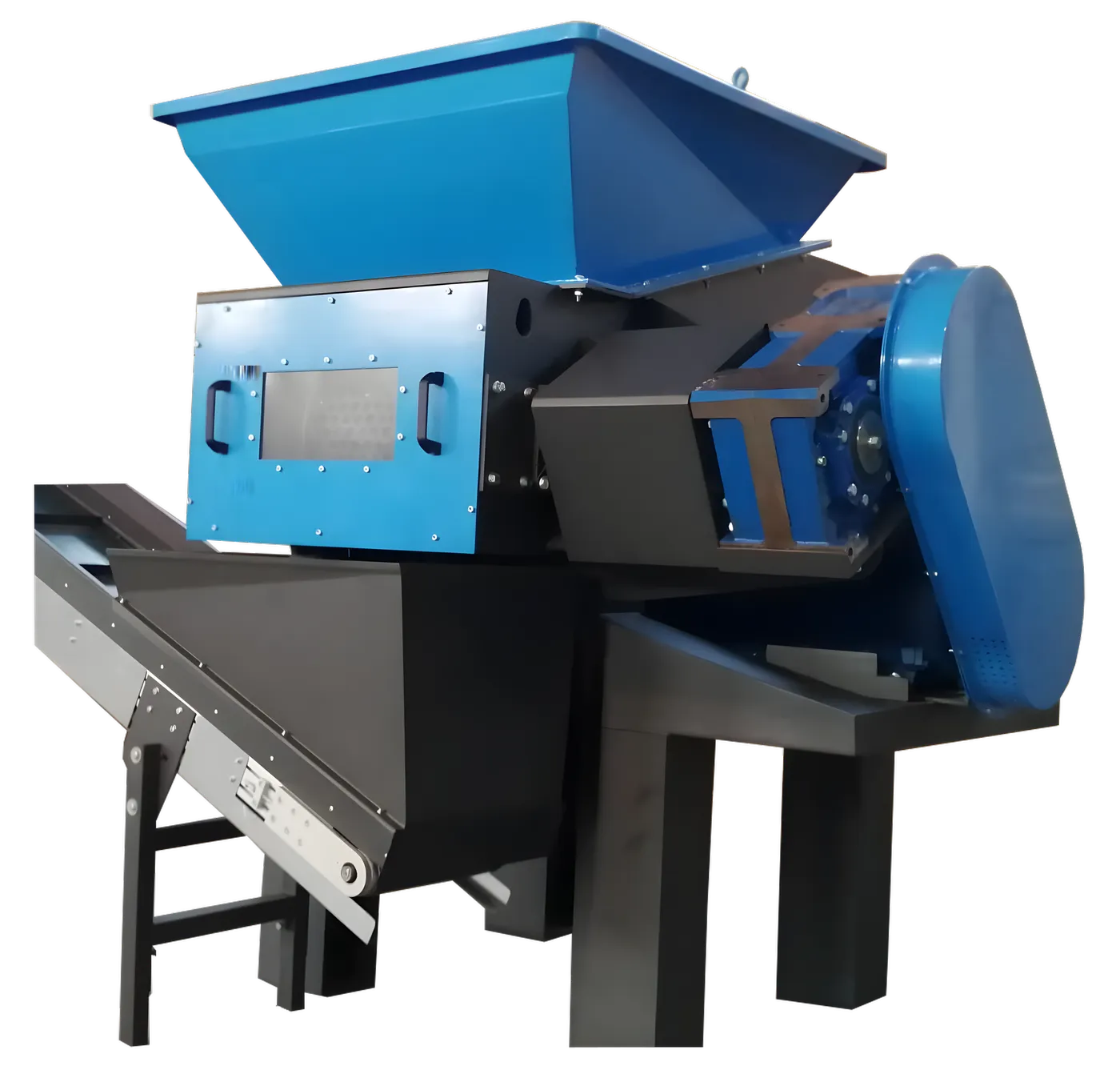

Shark single-shaft shredders.
Designed to shred very thick and highly cut-resistant materials. Ideal for reducing the volume of many waste materials, including in-line for continuous operation.
Single-shaft shredders Shark
The blades, reinforced with thermal and chemical carbonitriding, are mounted on the central shaft in special steel and can be used up to 4 times, once per side.
The material enters the cutting chamber pushed by a powerful electronically controlled hydraulic pusher, for a continuous and steady flow. If there is too much material, the shaft automatically reverses its rotation.
The coupling system between gearbox and shaft absorbs accidental shocks and protects the gearbox from costly breakage. The output size depends on the screen, also in reinforced steel.
- Carbonitrided blades, usable on 4 sides
- Electronically controlled hydraulic pusher
- Automatic anti-overload reversal
- Shock-absorbing gearbox-shaft coupling
- Alarms and emergency stop systems
- Can be integrated in-line for continuous operation
Models and technical data
Shark 600
TRM600KH- Power
- 18.5 kW (25 HP)
- Feed opening
- 570 × 270 mm
- Weight
- ~2 t
- Dimensions
- 1061 × 1960 × 2042 mm

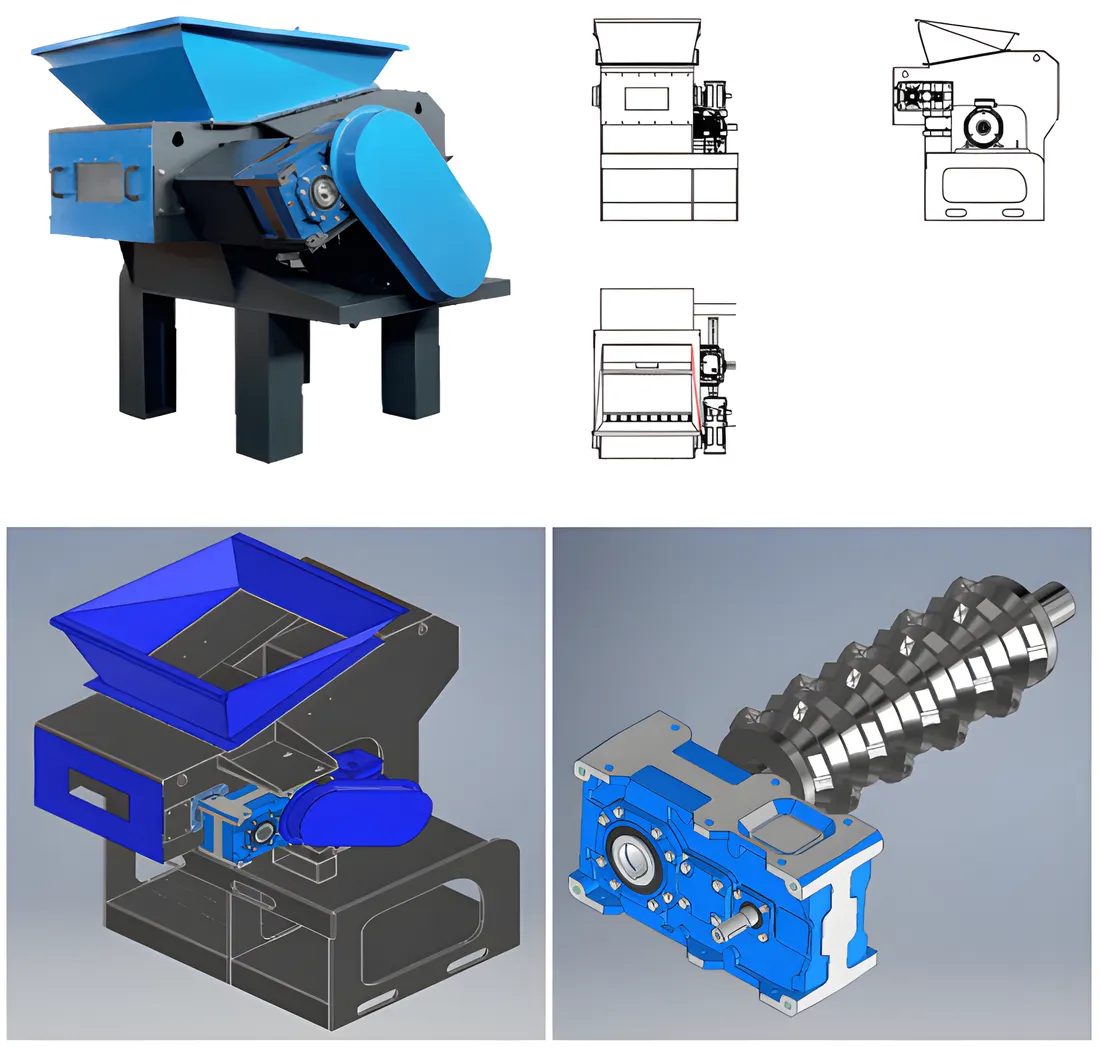

Shark 800
TRM800KH- Power
- 37 kW
- Feed opening
- 810 × 340 mm
- Weight
- ~3 t
- Dimensions
- 1600 × 1980 × 2275 mm
Shark 1500
TRM1500KH- Power
- 50 kW
- Feed opening
- 1510 × 530 mm
- Weight
- ~5 t
Indicative values: actual capacity depends on the material and configuration. Dimensions L × W × H. Every machine can be customised.
What it can process.
Other solutions in the range.
Twin-shaft shredders
High-torque twin shaft: large quantities of material with low energy consumption.
Photos, specifications and brochure →
Granulators
High-speed granulation of cables, circuit boards, tyres, wood and plastics.
Photos, specifications and brochure →
Compact metal recovery systems
All-in-one systems for cables, A/C radiators and WEEE: copper and aluminium with up to 99.8% purity.
Photos, specifications and brochure →
Horizontal compactor
Press from 1,500 to 2,600 kN: 23 m³ high-density bales, loaded directly onto the truck.
Photos, specifications and brochure →Interested in our Shark single-shaft shredders?
Describe the material to be processed and the quantities: our technical sales office will reply directly with a tailor-made proposal.
