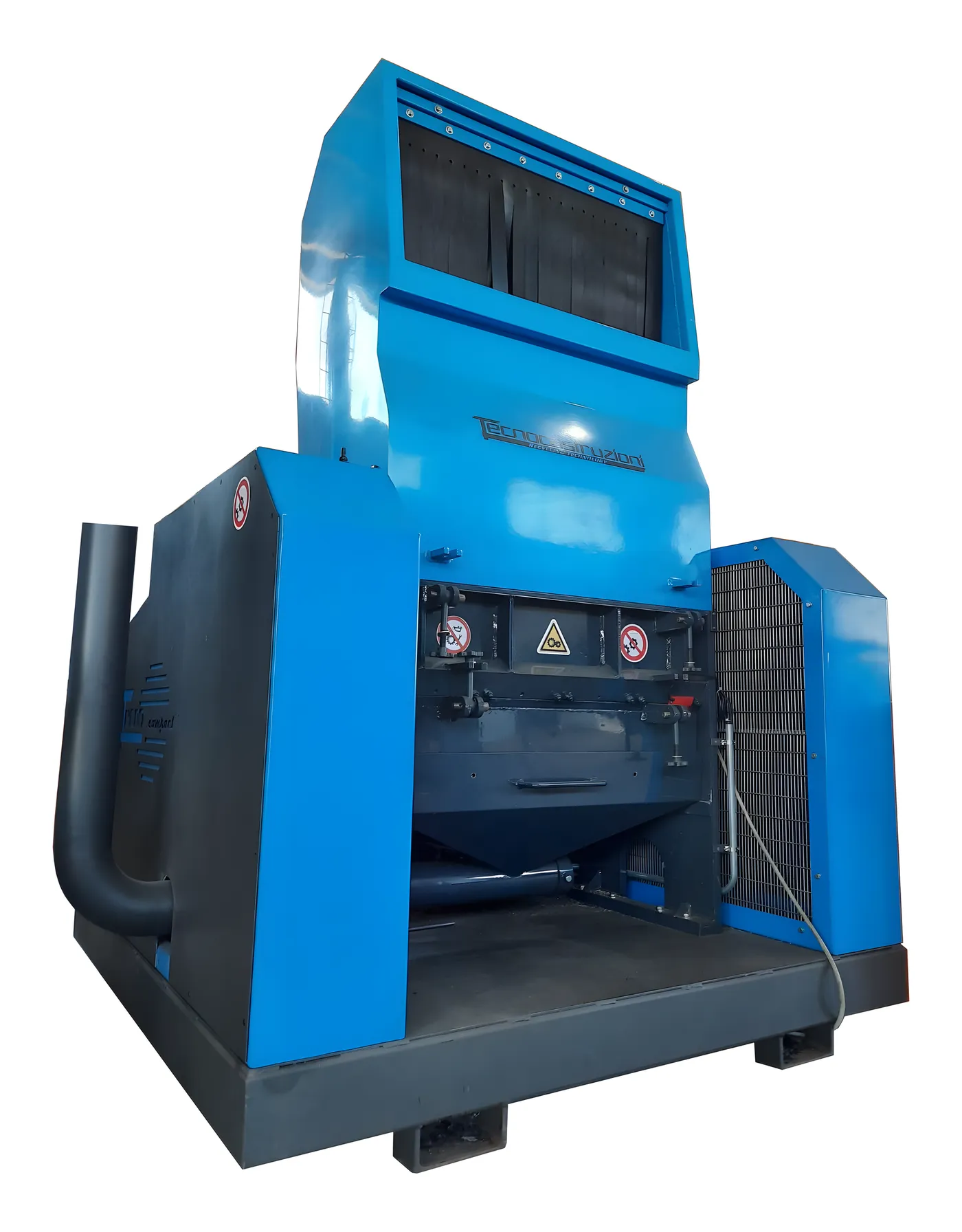

Piranha granulators.
Heavy-duty granulators, built with the best materials in both the structure and the electrical and electronic components. They reduce the material to granules and prepare it for separation.
Granulators Piranha
In the cutting chamber a solid steel shaft with reinforced blades rotates at high speed: it granulates copper cables, circuit boards, tyres, wood, plastics and many other materials, with a continuous and abundant flow.
The screen is easy to change to obtain the required particle size. The blades, treated with thermal and chemical carbonitriding, are strong, replaceable and adjustable.
A hydraulic jack opens the granulator head: maintenance, blade adjustment and chamber inspection become quick and easy. In a line the granulator performs the second pass after the shredder, but it can also work on its own.
- High-speed solid steel shaft
- Interchangeable screen for particle size
- Reinforced, replaceable and adjustable blades
- Hydraulic head opening
- Reinforced structure for high production rates
- Can be used in line or stand-alone
Models and technical data
Granulator 400
- Power
- 22 kW
- Feed opening
- 420 × 320 mm
- Weight
- ~600 kg
- Dimensions
- 900 × 1500 × 1800 mm
Granulator 1000
- Power
- 75 kW
- Feed opening
- 1020 × 470 mm
- Weight
- ~1 t
- Dimensions
- 1600 × 2100 × 2300 mm
Granulator 1600
- Power
- 132 kW
- Feed opening
- 1630 × 780 mm
- Weight
- ~8 t
- Dimensions
- 2400 × 2500 × 4500 mm
Indicative values: actual capacity depends on the material and configuration. Dimensions L × W × H. Every machine can be customised.
What it can process.
Brochures and data sheets.
Other solutions in the range.
Twin-shaft shredders
High-torque twin shaft: large quantities of material with low energy consumption.
Photos, specifications and brochure →
Single-shaft shredders
For thick, cut-resistant materials, with hydraulic pusher and blades usable on 4 sides.
Photos, specifications and brochure →
Compact metal recovery systems
All-in-one systems for cables, A/C radiators and WEEE: copper and aluminium with up to 99.8% purity.
Photos, specifications and brochure →
Horizontal compactor
Press from 1,500 to 2,600 kN: 23 m³ high-density bales, loaded directly onto the truck.
Photos, specifications and brochure →Interested in our Piranha granulators?
Describe the material to be processed and the quantities: our technical sales office will reply directly with a tailor-made proposal.
