Compact Systems

Compact Systems

TECNO Compact series is a Complete Technological Plant with a very small footprint able to realize the granulation of Copper Cables and allow a perfect seperation of clean copper granules from clean plastic granules.

Features
  • Fully Automatic Complete Plant

    The plant is wholly managed by and electronic control panel, that in an easy was allows to control and regulate all the parameters of the installation.

  • Powerful System

    The strength of this plant is the powerful Granulator Mill, that reduces the dimension of the shredded material to homogenous granules, then an automatic pneumatic conveyor takes all the granules to the high frequency vibrating table.

  • Efficiency

    This Seperation System works efficiently with a Combined Action - the shaking movement of the high frequency separation table is supported by a continuous and harmonious air flow, giving the big advantage of an easier separation and consequently increased quantity and quality of recycled material at the end of the process.

  • Sturdy

    High quality materials are employed: hardened steel, cast iron, Hardox - heat treatment - powerful and high efficiency motors - all experienced and innovative technology are considered to assure longevity to the plant

  • Performance

    The engineering of the system is conceived to guarantee the best performance with less energy consumption and allows to achieve a Purity of 99,8% of absolute clean Copper therefore the Tecno Compact is able to assure the best selling Price ever.

  • Low Running Costs

    The machines require a maximum of two operators to be fully operational

  • Safety

    Several safety alarms are installed in order to assure high safe working conditions.

  • Innovation

    A simple and intuitive touch screen allows to control all the parameters of the Installation, in order to quickly obtain the best performance.


Choose your model
  • Eco Compact 320
    • POWER: 45/60 kW
    • MACHINE WEIGHT: 3300 kg
    • MACHINE SIZE: 3000*2000*3500 mm
    • CAPACITY: up to 300 Kg/h
  • Eco Compact 520
    • POWER: 110 - 135 Kw
    • MACHINE WEIGHT: 3600 kg
    • MACHINE SIZE: 3200*2000*H3500 mm
    • CAPACITY: up to 500 kg/h
  • Eco Compact 720
    • POWER: 157 - 177 kW
    • MACHINE WEIGHT:  4500 kg
    • MACHINE SIZE: 4000*2000*H4000 mm
    • INPUT CAPACITY: up to 700 Kg/h

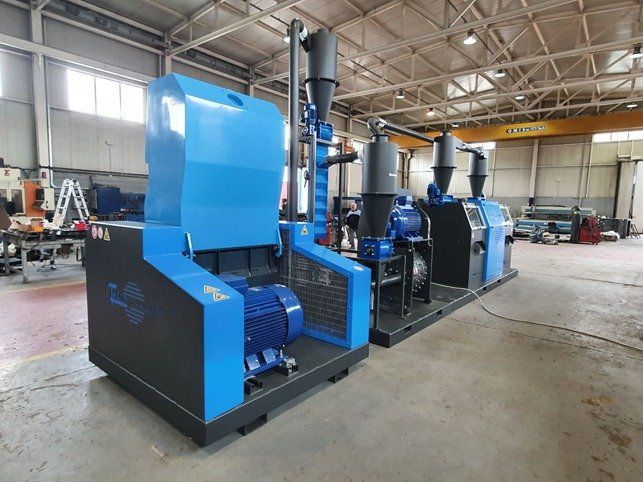

  • Eco Compact 1000

    POWER: 187 - 237 kW

    MACHINE WEIGHT:  9500 kg

    MACHINE SIZE: 9000*2000*H4300 mm

    INPUT CAPACITY: up to 1000 kg/h


Recycling Materials
Radiators, electric scrap, domestic appliances, electric engines, computers, mobile and fixed phones, hard disk, bossoles of ammunition, copper/brass/bronze
